DECK SYSTEMS

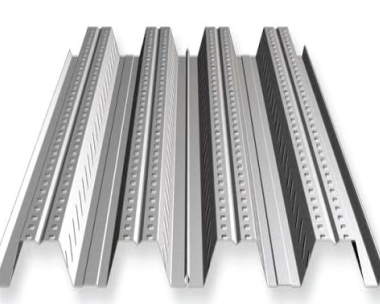

Seltech Deck can be used as a composite floor system or as a permanent from work. The fast and simple installation of this high strength platform gives immediate access to a walking platform. if saves considerable construction time which in turn saves in overself
cost, safety and accessibility of the project.

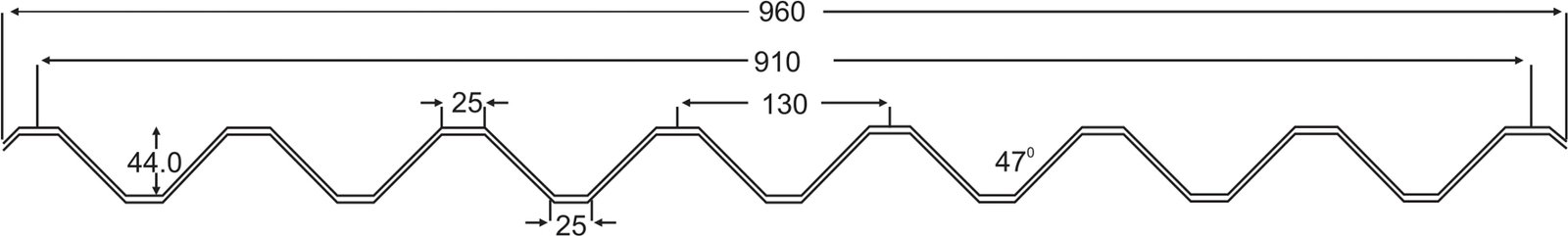

Seltech Deck is cold formed in 44mm depth, 130mm pitch, cover width of 910mm and overall width of 690mm out of galvanized and HR Coils in the thickness of 0.80mm to 2.5mm.
| Sr. No | thickness MM | Weight Sq/m | Weight Kg/m | Area cm **2 | lyy cm **4 | lxx cm **4 | Zyy cm **3 | Zxx cm **3 | Ryy cm | Rxx cm |
|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 0.06 | 6.37 | 5.80 | 7.39 | 19.29 | 5567 | 8.34 | 119.71 | 1.62 | 27.44 |
| 2 | 0.80 | 8.50 | 7.74 | 9.86 | 25.73 | 7723 | 11.08 | 115.59 | 1.62 | 27.44 |
| 3 | 1.00 | 12.29 | 10.20 | 12.32 | 33.38 | 9278 | 15.17 | 194.48 | 1.61 | 27.44 |
| 4 | 1.20 | 12.43 | 11.56 | 14.73 | 38.32 | 11099 | 16.32 | 232.49 | 1.61 | 27.44 |
| 5 | 1.60 | 16.57 | 15.37 | 19.58 | 50.81 | 14776 | 21.41 | 309.12 | 1.61 | 24.44 |
| 6 | 2.00 | 20.71 | 19.14 | 24.39 | 63.02 | 19398 | 26.24 | 384.89 | 1.60 | 27.46 |
| 7 | 2.50 | 25.89 | 23.94 | 30.49 | 78.81 | 19936 | 32.46 | 481.06 | 1.60 | 27.46 |
| MATERIAL | GALVALUME | PRE-COATED | GALVANIZED |
|---|---|---|---|
| Thickness | 0.47-1.6 | 0.5-1.6 | 0.45.1.6 |
| Coating | Alu-Zin 150GSN | Zink 120GSN | Zink 120GSN |
| Length | Uto 12 Mtr | Uto 12 Mtr | Uto 12 Mtr |
| Color | As per Color shed | As per Color shed | As per Color shed |
| Strength | 340 | 240-340 | 240-70 |
| SR.No | Thickness | 1 | 1.2 | 1.4 | 1.5 | 1.6 | 1.7 |
|---|---|---|---|---|---|---|---|
| 1 | 0.45 | 500.0 | 370.0 | 270.0 | 235.0 | 205.0 | 185.0 |
| 2 | 0.50 | 590.0 | 410.0 | 300.0 | 260.0 | 230.0 | 205.0 |
| 3 | 0.55 | 645.0 | 445.0 | 329.0 | 285.0 | 250.0 | 220.0 |
| 4 | 0.60 | 700.0 | 485.0 | 355.0 | 310.0 | 275.0 | 240.0 |
| 5 | 0.65 | 760.0 | 525.0 | 385.0 | 335.0 | 295.0 | 260.0 |
| 6 | 0.80 | 930.0 | 640.0 | 475.0 | 410.0 | 360.0 | 320.0 |
